Adding a DimCount Column

You can add a column that displays the DimCount for a dimension on the dive window. This enables you to see DimCounts for dimensions that are not in the current dive window.

To add a DimCount column:

  1. Double-click the header cell on a blank column.

    The Add column Closeddialog box, Definition tab opens. ProDiver populates the Dimension Counts box depending on the cBase or model and existing DivePlan.

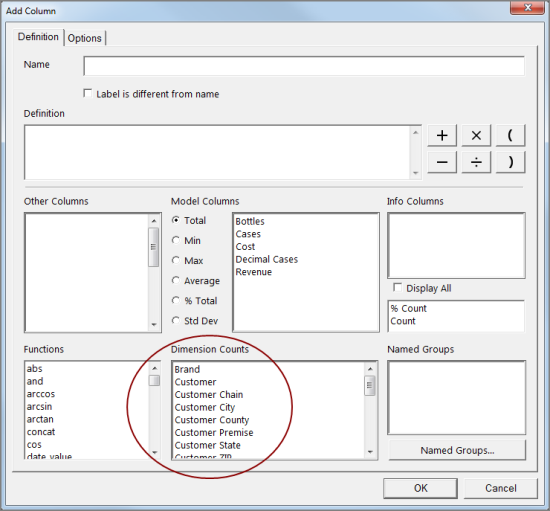

    Add column dialog box.

  2. In the Dimensions Counts box, select the Dimension for which you want to create a DimCount column.

    ProDiver populates the Definition Closedbox with your selection.

    Add column dialog box showing customer dimcount selected.

  3. In the Name box, enter a name for the column, and then click OK.

    The new column appears on the active window. In this Closedexample, the Customer DimCount is displayed for each Sales Manager.

    Dimcount column on a tabular display.

NOTE: You can refine the DimCount column display to suit your needs. For example, you can specify that the Customer DimCount applies only to a particular city. For more information, see Applying Data Filters to a DimCount Column.
