Creating a MultiTab Display

To convert the contents of a tabular display dive window to a MultiTab display:

  1. Do one of the following:

    • On the menu bar, select Display > Tabulars > MultiTab.
    • On the toolbar, click the MultiTab/Tabulars icon .

    • On the toolbar, open the Tabulars context menu, and then select MultiTab.

      Menu bar with expanded Tabulars menu options.

    On the Console, the dive arrows point to the right Blue arrow pointing right. to indicate dimensions that are suitable for using as a vertical dimension.

  2. On the Console, double-click a dimension that you want to add to the MultiTab display.

    The new vertical dimension is added to the dive window.

NOTE: You can add as many available vertical dimensions as you want to the MultiTab display.

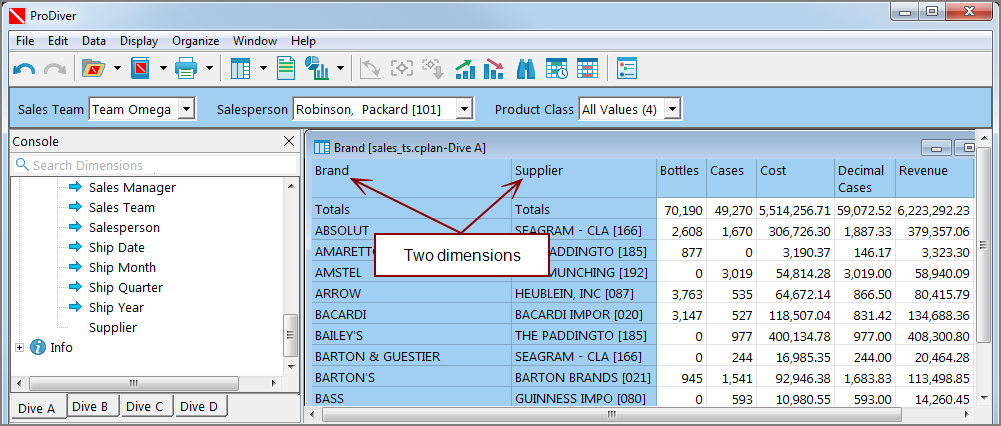

MultiTab example.

You can dive further on a MultiTab display column or row. However, if you select a cell in the dive window, any further dive reverts to a basic tabular display, showing only the most recently selected dimension and the row in which the selected cell appears.

See also:
