Adding a Summary Name Item

You can add a Summary Name item as a report column heading if the name is available on the Item Type list in the Add Item dialog box. Alternatively, you can enable the Use Summary Name from Model option and ProDiver substitutes the original name of the summary from the cBase or model.

Complete the following steps:

1. Open the marker file containing the baseline report with deleted items. Alternatively, open the marker you saved from Adding a Dimension Value Item to view the progression of adding back all of the items deleted from the baseline report.

2. To display the report in edit mode, click the Lock/Unlock icon.

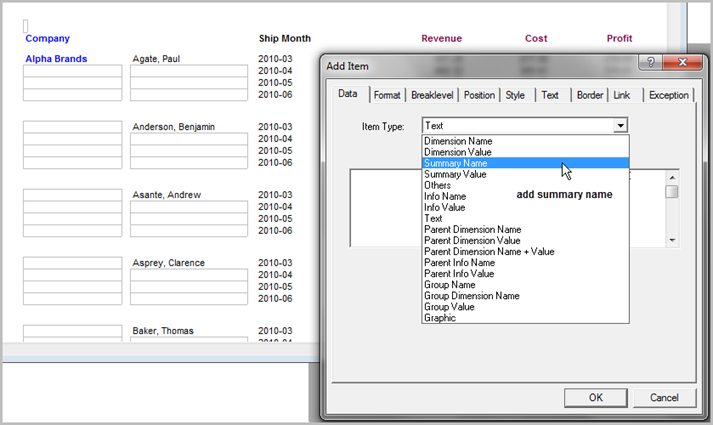

3. To open the Add Item dialog box, click the Add Item icon.

4. In the Item Type list, select Summary Name.

5. In the Summary Name list, select Cases.

6. Click OK to add Cases to the report.



7. To configure this item, double-click Cases to open the Edit Item dialog box and perform the following actions:

• In the Breaklevel tab, set the Breaklevel to Page and the Location to Head2.
• In the Position tab, set the Column to Column D.
• In the Style tab, set the Style Name to Column Header.

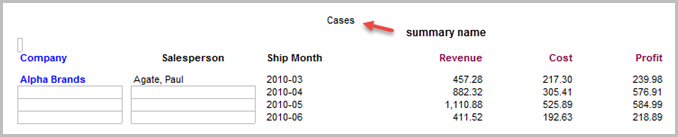

8. Click OK to display the report window with the summary name Cases in the proper position and with the correct attributes.



   NOTE: You can save this report as a marker and continue with Adding a Summary Value Item to build back all of the items deleted from the baseline report.
