VI Tunnel Output Object

When DiveLine runs a Tunnel file, certain DiveLine values are passed as parameters to the Tunnel script. To use these parameters, they must be declared in the Parameters sub-tab at the bottom of the Tunnel script window. These parameters all start with an underscore (_) to distinguish them from parameters that can be passed from the report palette or a DivePort click action.

\di\solution\dl-dataroot\data

TIP: Tunnel parameter names are case sensitive.

When opening a Tunnel file, DiveLine runs the given script, reads the data returned by the Tunnel output object, and constructs a dynamic memory model that then opens. A Tunnel file can be used in the same way as a mdl file can be used, that is, in DivePlans and in markers. It can be used in a report palette cell link or a report window item link. These links employ the standard diveref: syntax:

diveref:window_type["tunnel_file.tnl"
	{parm="$TEXT"}.dive_dimension,
	_attribute_name="attribute_value"]

For more information about window dive reference strings, see ProDiver Help.

For Model calculation references, the general syntax is:

Summary Type[ "tunnel_file.tnl"
	{ parameter1="valuea",
	  parameter2="valueb"}.Summary field,
	  dimension1="valuec", dimension2="valued" ]

where Summary Type is "Total", "Minimum", "Maximum", etc. For more information about calculation references, see ProDiver Help.

Numerous DivePort portlets can use a Tunnel script as a data source. This includes Measures, Marker, and Indicator portlets. In addition, when tables are defined in DivePort, attributes can be specified so values are constrained by a list. Such a list can be sourced from a fixed list (hard coded), from a table (document library or input table), or from a view ( mdl, dvp, tnl ). Table settings can also include extra form validation, which allows for passing a completed form into a validation Tunnel script. Customized, real-time data validation and responses to submitted forms are possible.

NOTE: When DivePort uses a Tunnel script, it makes all QuickView and QuickView values available to the script. However, this does not include Model QuickViews. Only External QuickViews are passed to Tunnel scripts.

A DivePort implementation can also include event-driven server scripts that use Tunnel scripts to ensure the freshness of data presented in the portal. For more information on using Tunnels with DivePort, see DivePort Administrator Help.

Although all DiveLine clients support Tunnel scripts, user configurations must be set in DI-Config to allow Tunnel file execution in the 6.4 DiveLine namespace. Also, in terms of data security, DiveLine ACLs for tnl files are similar to mdl files. Access is granted or denied on the memory model, not on the source data. If the source data is a model, ACLs were applied when the memory model was built.

For 7.x projects, if access control rules are defined such that the user has read permission to see and open a Tunnel script, the script can run. There are no additional access control checks on files that Tunnel scripts open from a project. Tunnel scripts can only be created by authorized users, and these scripts are considered trusted. This matches non-project behavior.

You should use DI Production whenever you have a Build task. Production creates files that are used semi-permanently (at least for the rest of the day). While it is optimized for batch processing overnight, it is also capable of building models over the course of the day for various caching reasons. Use Production when you want to keep the results available for longer than the session.

Use the Tunnel functionality whenever you have an ephemeral need for data that you cannot extract from a model because of performance concerns or because the data needs to be retrieved in real time. Tunnel scripts should not leave files behind—or at least not ones that need to be consumed by other processes. In the end, the Tunnel script should output only a memory model. Use Tunnel when you do not need the results after the user is done with them.

A best practice is to use Tunnel functionality when you have a single Integrator script to build a model. Use Production when you have a series of Integrator scripts that need to be run.

You set attributes for the Tunnel output object in the object attribute pane

Each object has an area where you can enter comments.

It is a DI best practice to enter a note for every object in a VI script. You can set a VI preference to give a warning for each object without a note. For more information, see Visual Integrator Preferences.

Tunnel output object with comments

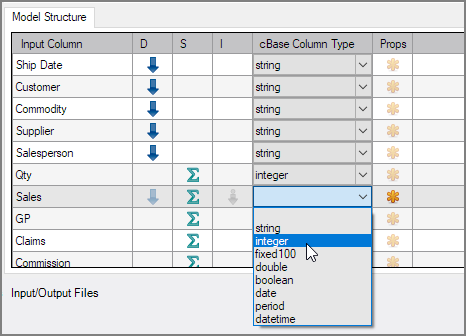

You set attributes for the Tunnel output dynamic memory model in the Model Structure column grid.

For each input column you can indicate the following column properties.

Column Properties Dialog Box

The Column Properties dialog box allows you to set detailed properties for dimension, summary, and info field columns prior to building the dynamic memory model. Irrelevant properties are grayed out.

It is important to identify date columns so that they are stored properly in the model, facilitating ProDiver functions such as sorting, date and time functions, and time series.

Attribute	Description
Name	Displays the name of the input column
Column is a string	Columns with numeric data are considered numeric columns and any leading zeros are stripped off. Select this check box for columns that contain numeric data that should not have any calculations made on it, such as zip codes or part numbers. This attribute preserves leading zeros in the data and allows use of string manipulation functions.
Format	If the column is a date string, select a format from the pulldown. Choices include: YYYY/MM/DD YYYYMMDD MMDDYYYY MM/DD/YYYY YYYY-MM-DD YYYY/QQ YYYY-QQ YYYY-\Www
Column is a date	Select this check box to treat the column as a date. This attribute is equivalent to clicking the Date column for an input column in the Model Structure. If selected in the Model Structure, the Column is a date check box is selected and the same in reverse. When creating a model, Builder converts date columns into an internal date format (an integer number). This number represents the count of days since December 31, 1899. This internal format lets ProDiver easily manipulate dates for use in time series, period comparisons, calendar plots, and dimension date roll-up features. This allows ProDiver to sort dates chronologically, by year as well as month and day. For example, 12/10/2011 would come before 10/10/2012, but after 01/01/2011.
Period calendar	Select the calendar fora period column. Valid calendars are the ones described in the Spectre topics (Date and Time Functions, Time-Series Functions, Creating a Custom Calendar): gregorian month, gregorian quarter, iso8601 week, gregorian+<N> month or a custom calendar file. TIP: These "Spectre capabilities" only apply when the tunnel script is used in a tunnel-input in a cPlan.
Column contains nullable data	For columns marked as summaries, select this attribute so that Builder distinguishes between zeros and nulls and keeps a count of the non-null values in the input. Normally, Builder treats null values in input as zeros. This count is used when calculating averages and standard deviations on the field in ProDiver. Setting this attribute slightly increases the size of the resulting model.
Sort by	For columns marked as dimensions, allows you to set up an alternative sort. By default, ProDiver sorts low to high in the following order: Numbers Uppercase characters Lowercase characters This alternate sort is an internal sort within the model of one column following the default sort of another column. An example of an alternate sort is to sort the dimension parts by part number rather than alphabetically. Select the desired column from the list to change the sort order for the dimension.

Use the Tree Grid to manipulate the output that displays in the ProDiver console.

The tree builds as you make selections in the Model Structure section, and the dimension order in the tree is what appears in the ProDiver console.

In the Tree view you can:

• Double-click an item to open that column's Column Properties dialog box.

• Use the context menu commands to reorder items or change properties of the tree grid.
