cPlan Metadata Samples

Spectre has a metadata input tag which can be used to retrieve information about a data source:

metadata {
      cbase-input "Accounts.cbase"
    }

There is an optional type tag that allows you to fetch defined properties. These types are:

calcs, dimensions, inputs, calc-properties, dimension-properties, input-properties and cplan-properties.

With this Build File:

build {
  list-input name="list" {
    data """Str Num Dat
    ABC 1 2021/02/24
    DEF 2 2021/02/25
    abc 3 2021/02/26
    def 4 2021/02/27
    """
    column "Str" {
      property "Description" "Column Desc"
      property "Definition" "Letter Strings(3)"
      custom-property "My custom column property" "MyProp-C"
    }
    column "Num"
    column "Dat"
  }
  output "/bugsdata/46000s/46180/cbase-props-gh.cbase" name="cbase-props-gh"

  property "Description" "Test Property Table"
  property "Date Dimension" "Dat"
  property "Current Date" "2021/02/25"
  custom-property "My custom table property" "MyProp-T"

}

And this Dive file:

dive {
  cplan {
    metadata type="calcs" {
      cbase-input "cbase-props-gh.cbase"
    }
  }
  detail-window {
    all-cbase-columns
  }
}

The resulting dive window shows these calcs properties:

Calcs Property Dive Window

Given the following Dive and cPlan:

dive {
  cplan {
    metadata type="dimension-properties" {
      cplan {
        list-input {
          data """Str Num Dat
          ABC 1 2021/02/24
          DEF 2 2021/02/25
          abc 3 2021/02/26
          def 4 2021/02/27
          """
          column "Str" {
            property "Description" "Column Desc"
            property "Definition" "Letter Strings(3)"
            property "Reference" "Random Strings"
            custom-property "My custom column property" "MyProp-Col"
          }
          column "Num" {
            property "Description" "A number"
          }
          column "Dat"
        }

        dimension "StrX" `value("Str") + "X"` {
          property "Description" "An extra dimension"
          property "Definition" "Same as Str, but with X at the end"
          custom-property "My custom dimension property" "MyPropDim-X"
        }

        calc "Num" {
          // "Description" is inherited
          property "Good Direction" "Down"
          custom-property "My custom calc property" "MyProp-Calc"
        }

        property "Description" "Cplan Desc"
        property "Date Dimension" "Dat"
        property "Current Date" "2021/02/25"
        custom-property "My custom table property" "MyProp-Tble"
      }
    }
  }
  detail-window {
    all-cbase-columns
  }
}

The Dive window shows the following dimension-properties table.

Dimension Properties Dive Window

Using a multilevel cPlan:

dive {
  cplan {
    metadata type="inputs" {
      cplan {
        multilevel {
          cbase-input "/cbases/002_concat.cbase" name="First"
          cbase-input "/cbases/012-simple-build_sales.cbase" name="Second"
        }
      }
    }
  }
  detail-window {
    all-cbase-columns
  }
}

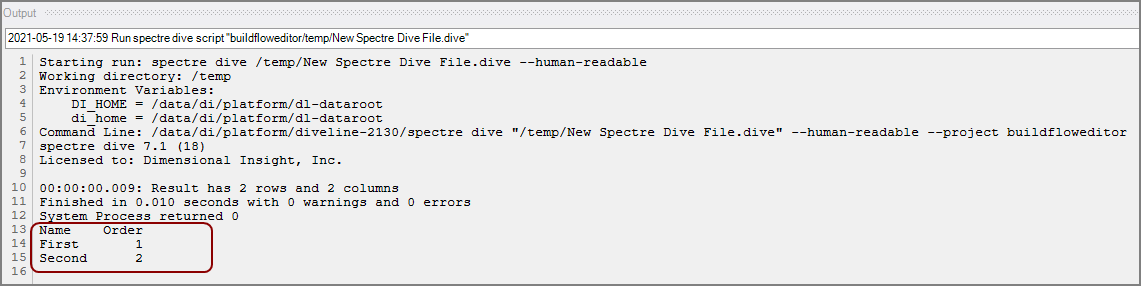

With type inputs, the metadata in the dive window is limited to the following.

Metadata for Inputs

With this Build file:

build {
  list-input name="list" {
    data """Str Num Dat
    ABC 1 2021/02/24
    DEF 2 2021/02/25
    abc 3 2021/02/26
    def 4 2021/02/27
    """
    column "Str" {
      property "Description" "Column Desc"
      property "Definition" "Letter Strings(3)"
      custom-property "My custom column property" "MyProp-C"
    }
    column "Num"
    column "Dat"
  }
  output "/bugsdata/46000s/46180/cbase-props-gh.cbase" name="cbase-props-gh"

  property "Description" "Test Property Table"
  property "Date Dimension" "Dat"
  property "Current Date" "2021/02/25"
  custom-property "My custom table property" "MyProp-T"

}

Using this Dive:

dive {
  cplan {
    metadata type="calc-properties" {
      cbase-input "cbase-props-gh.cbase"
    }
  }
  detail-window {
    all-cbase-columns
  }
}

The Dive window displays the following calc-properties metadata:

Metadata for Calc-Properties

Using this Build:

build {
  list-input name="list" {
    data """Str Num Dat
    ABC 1 2021/02/24
    DEF 2 2021/02/25
    abc 3 2021/02/26
    def 4 2021/02/27
    """
    column "Str" {
      property "Description" "Column Desc"
      property "Definition" "Letter Strings(3)"
      custom-property "My custom column property" "MyProp-C"
    }
    column "Num"
    column "Dat"
  }
  output "/bugsdata/46000s/46180/cbase-props-gh.cbase" name="cbase-props-gh"

  property "Description" "Test Property Table"
  property "Date Dimension" "Dat"
  property "Current Date" "2021/02/25"
  custom-property "My custom table property" "MyProp-T"
 }

With this Dive:

dive {
  cplan {
    metadata type="dimension-properties" {
      cbase-input "cbase-props-gh.cbase"
    }
  }
  detail-window {
    all-cbase-columns
  }
}

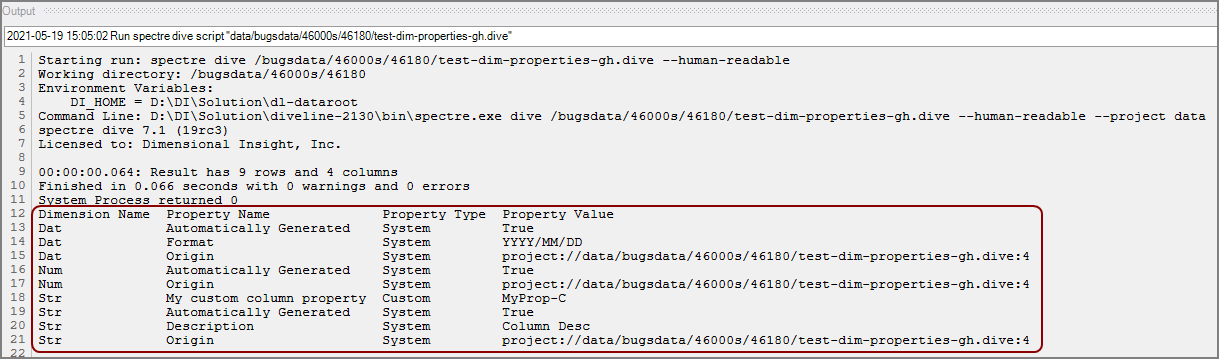

Displays this metadata about dimension-properties in the dive window:

Metadata for Dimension-Properties

With these two builds:

build {
  list-input name="list" {
    data """Str Num Dat
    A 1 2021/02/24
    B 2 2021/02/25
    """
    column "Str" {
      custom-property "Prop A" "A"
    }
    column "Num"
    column "Dat"
  }
  output "/bugsdata/46000s/46180/cbase-props.cbase" name="cbase-props"
  custom-property "Prop B" "B"
  property "Description" "Table Desc"
  property "Date Dimension" "Dat"
  property "Default Current Date" "2021/02/25"
}
build {
  list-input name="list" {
    data """Str Num Dat
    ABC 1 2021/02/24
    DEF 2 2021/02/25
    abc 3 2021/02/26
    def 4 2021/02/27
    """
    column "Str" {
      property "Description" "Column Desc"
      property "Definition" "Letter Strings(3)"
      custom-property "My custom column property" "MyProp-C"
    }
    column "Num"
    column "Dat"
  }
  output "/bugsdata/46000s/46180/cbase-props-gh.cbase" name="cbase-props-gh"

  property "Description" "Test Property Table"
  property "Date Dimension" "Dat"
  property "Current Date" "2021/02/25"
  custom-property "My custom table property" "MyProp-T"
 }

If you dive on the cBases as a multilevel:

dive {
  cplan {
    metadata type="input-properties" {
      cplan {
        multilevel {
          cbase-input "cbase-props.cbase" name="First"
          cbase-input "cbase-props-gh.cbase" name="Second"
        }
      }
    }
  }
  detail-window {
    all-cbase-columns
  }
}

The resulting metadata window displays these input-properties:

Metadata for Input-Properties

With the following Build script:

build {
  list-input name="list" {
    data """Str Num Dat
    ABC 1 2021/02/24
    DEF 2 2021/02/25
    abc 3 2021/02/26
    def 4 2021/02/27
    """
    column "Str" {
      property "Description" "Column Desc"
      property "Definition" "Letter Strings(3)"
      custom-property "My custom column property" "MyProp-C"
    }
    column "Num"
    column "Dat"
  }
  output "/bugsdata/46000s/46180/cbase-props-gh.cbase" name="cbase-props-gh"

  property "Description" "Test Property Table"
  property "Date Dimension" "Dat"
  property "Current Date" "2021/02/25"
  custom-property "My custom table property" "MyProp-T"

}

The properties for the cBase appear in the cBase Viewer:

cBase Viewer Properties for the test cBase

The following Dive:

dive {
  cplan {
    metadata type="cplan-properties" {
      cbase-input "cbase-props-gh.cbase"
    }
  }
  detail-window {
    all-cbase-columns
  }
}

Produces the following window and cplan-properties table:

cBase Metadata Properties
