Creating a Report Page

A report page can be easily added to a sections or pages block in an existing divetab script. This example starts with the GUI and shows how to create a new separate script to define a report page.

1. In Workbench, open your DiveTab project.

2. Right-click on the /divetab/scripts folder and select New > DiveTab Module.



3. Where highlighted in the Explorer pane, name the script data_report_page.divetab.

4. Click the Data Area button.

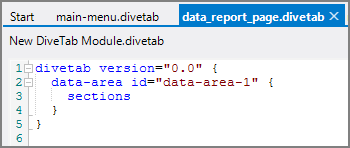

   The basic code displays.



5. Change the id value to something more meaningful, for example, sales.

   This id is used internally in the script.


6. Within the data-area, add a title for the DiveTab users, for example, Report Page Sample.
7. To add an icon for the menu:
   1. Open the /divetab/images folder in the Explorer pane and copy the path of a graphic.
   2. Enter an icon tag and paste the path in the script. For example, icon "/divetab/images/menu icons/34.png".
8. Expand the sections block, starting with an open brace.

9. Enter a block for a report-page by specifying the basics: a title, a cPlan, a dimension, and a numeric column. For example:

     report-page {
       title "Product Group"
       cplan "/cplans/basic_101.cplan"
       dimension "Corporate Product Group"
       text column = "Cases"
     }


10. Save the script.



To test the script, the following steps create a link on the menu page to this External Area.

1. Return to your main menu divetab module in Workbench.

2. Select the green plus sign and select Link to External Area.



3. In the Select File dialog, find and select the script for the new report page, data_report_page.divetab.
4. Click Save.

5. Open your DiveTab client and click Sync.

   Here is the menu before Syncing.

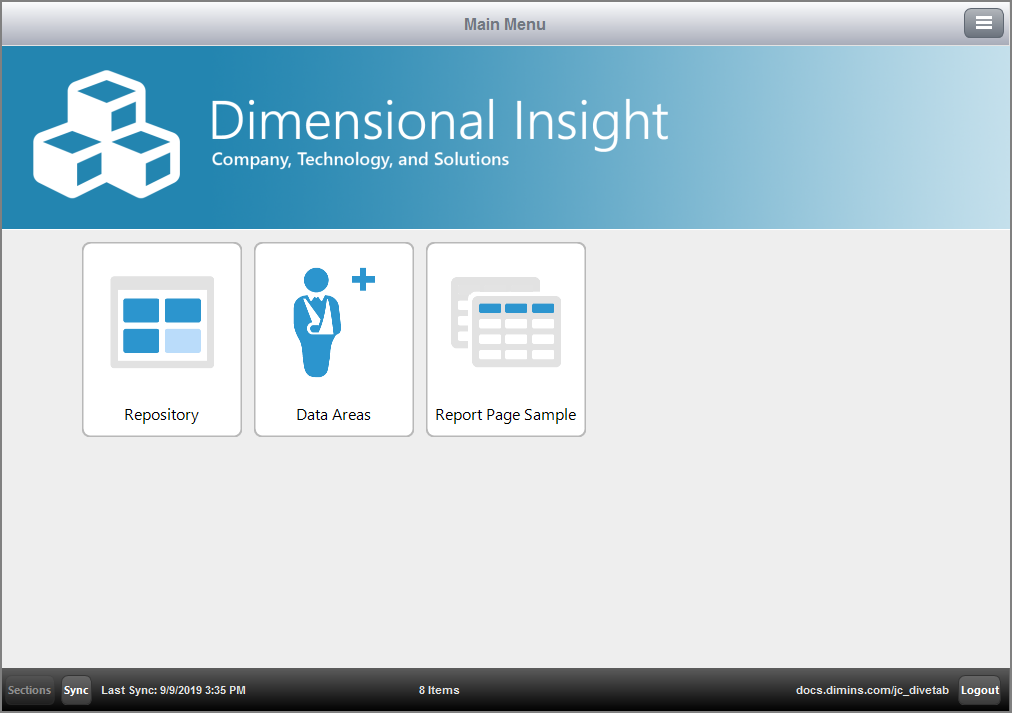

   Here is the menu after Syncing.



6. Click on the Report Page Sample button.

Here is the report page displayed in DiveTab.

Here is the report page showing the default context menus in DiveTab.

NOTE: You can view one context menu at a time.
