Stamp Areas Using Different Versions of DiveTab
The following examples show a stamp area defined in a DiveTab module.
Example 1: Using DiveTab 7.1(25) and later
stamp-area id = "stamp-area-code-v25" device-type = "all" {
title "Stamp Area Code Sample 1"
icon "/divetab/images/menu icons/2.png"
factory-name "distributor-mf_02"
stamp "Today vs Yesterday" label = "Today Stamp" {
text {
current-day {
label "Today"
}
previous {
difference
percent-difference
label "Yesterday"
}
}
}
stamp "MTD vs LY Complete Month" label = "VS LY Complete Month" {
text {
month-to-date {
label "Current" {
column-title "Current Month"
}
}
previous-year type = "complete" {
difference
percent-difference
label "LY MTD" {
column-title "LY Complete Month"
}
}
label "MTD vs LY Complete Month"
}
}
stamp "QTD vs LY QTD" label = "QTD" {
text {
quarter-to-date
previous-year {
difference
percent-difference
}
}
}
stamp "YTD vs Prev YTD" label = "YTD" {
text {
year-to-date
previous-year {
difference
percent-difference
}
}
}
stamp "Today vs Same Day LY" label = "Today vs One Year Ago" {
text {
current-day
previous-year {
difference
percent-difference
}
}
}
stamp "MTD vs Prev MTD" {
text {
month-to-date
previous {
difference
percent-difference
}
}
analysis-column "Today vs Same Day LY"
}
stamp "YTD vs LY Complete Month" label = "LY Complete Month Stamp" {
text {
year-to-date
previous type = "month-end" {
difference
percent-difference
}
}
}
stamp "R3-to-Date vs LY R3-to-Date" label = "VS LY R3 Stamp" {
text {
rolling-months 3
previous-year {
difference
percent-difference
}
}
}
stamp "R6-to-Date vs Prev R6-to-Date" label = "R6 vs Prior R6" {
text {
rolling-months 6
previous-year {
difference
percent-difference
}
}
}
stamp "R12-to-Date vs LY Complete R12" label = "R12 vs LY Complete R12" {
text {
rolling-months 12
previous-year type = "complete" {
difference
percent-difference
}
}
analysis-column "R3-to-Date vs LY R3-to-Date"
analysis-column "R6-to-Date vs Prev R6-to-Date"
}
stamp "Line Chart YTD vs LY" {
line-chart {
year-to-date
previous-year {
difference
percent-difference
}
}
}
stamp "Bar Chart R12 vs LY" {
bar-chart {
rolling-months 12
previous-year {
difference
}
}
}
stamp "VS Total" {
text {
current-day
versus aux-measure = "Total" {
percent-difference
}
}
}
stamp "VS Goal" {
text {
month-to-date
versus aux-measure = "Goal"
}
}
stamp "VS Sample Budget" {
text {
quarter-to-date {
label "Actual"
}
versus aux-measure = "Sample Budget" {
difference
percent-difference
}
}
}
stamp-book "nTD" {
stamp "QTD vs LY QTD"
stamp "YTD vs Prev YTD"
stamp "MTD vs Prev MTD"
stamp "MTD vs LY Complete Month"
stamp "YTD vs LY Complete Month"
}
stamp-book "Rn" {
stamp "R3-to-Date vs LY R3-to-Date"
stamp "R6-to-Date vs Prev R6-to-Date"
stamp "R12-to-Date vs LY Complete R12"
}
stamp-book "Chart" {
stamp "Line Chart YTD vs LY"
stamp "Bar Chart R12 vs LY"
}
stamp-book "Aux-Measure" {
stamp "VS Total"
stamp "VS Goal"
stamp "VS Sample Budget"
}
stamp-book "All" {
stamp-book "nTD"
stamp-book "Rn"
stamp-book "Chart"
stamp-book "Aux-Measure"
stamp "Today vs Yesterday"
stamp "Today vs Same Day LY"
}
measure "9L Cases" stamp-book = "Rn"
measure "Cases" stamp-book = "nTD"
measure "Net Sales"
measure "Accts Sold"
measure "Sample Expenses
measure "Velocity"
measure "Net Sales"
measure "Goal"
default-stamp-book "All"
default-stamps {
default-stamp measure = "9L Cases" stamp = "R12-to-Date vs LY Complete R12"
default-stamp measure = "Cases" stamp = "MTD vs LY Complete Month"
default-stamp measure = "Sample Expenses" stamp = "VS Sample Budget"
default-stamp measure = "Cases" stamp = "MTD vs LY MTD"
default-stamp measure = "Velocity" stamp = "Line Chart YTD vs LY"
}
dimensions {
dimension "Sales Representative"
dimension "Product Type"
dimension "Brand"
dimension "Date"
dimension "Sales Division"
dimension "Vintage"
}
filters {
filter "Supplier"
filter "Premise"
}
update-time aux-measure = "Update Time" format = "MMM D, YYYY"
}

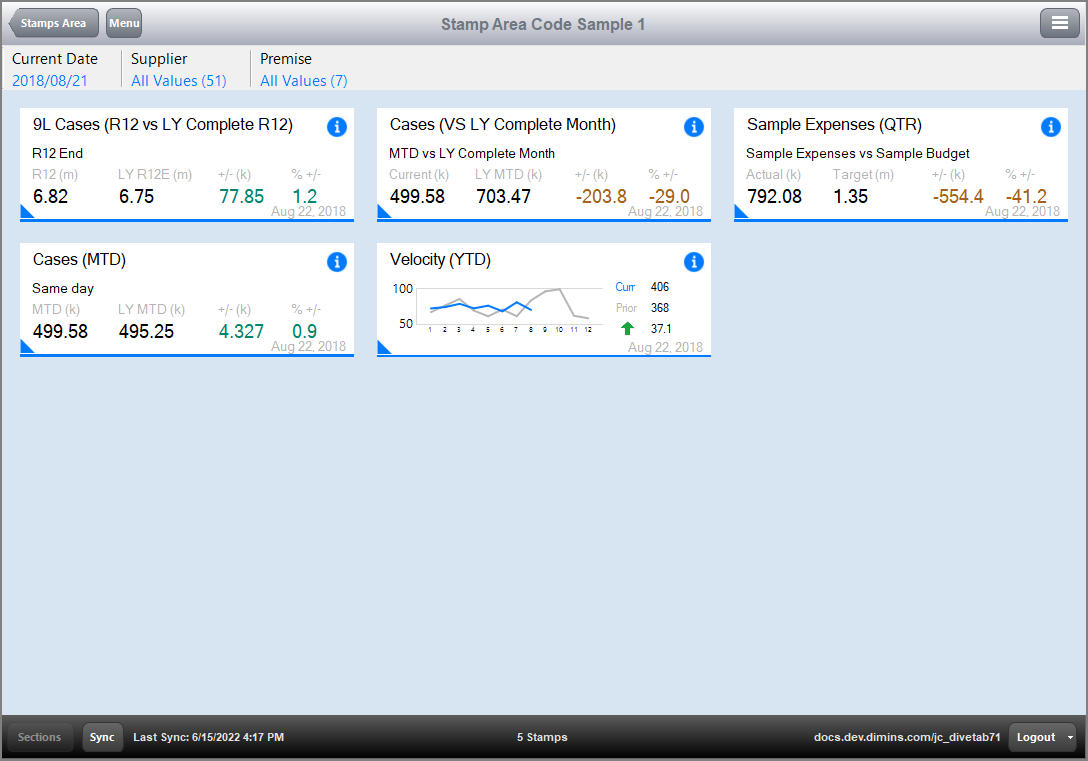

The
result of the code in DiveTab for the stamp area.

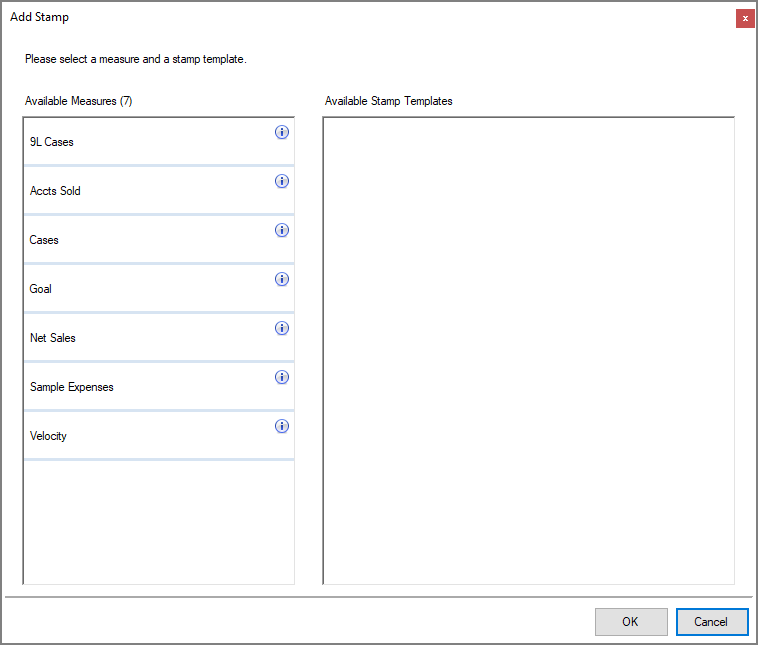

Add Stamp dialog box.
Example 2: Using DiveTab 7.1(21)

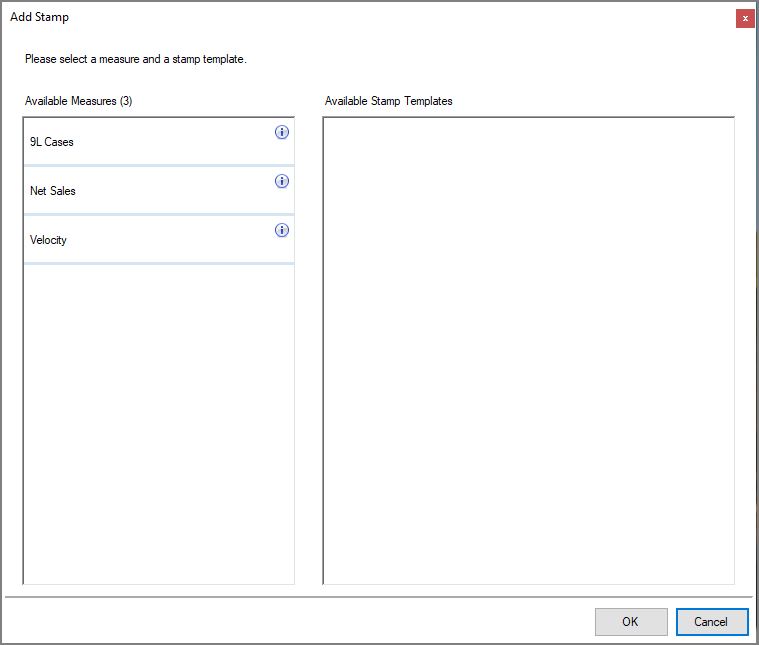

Example 3: Using DiveTab 7.1(20) and Earlier
