Spectre Flow Sort Process Object

The Spectre Flow Sort Process object allows you to reorder the data before building the output or continuing with further processing.

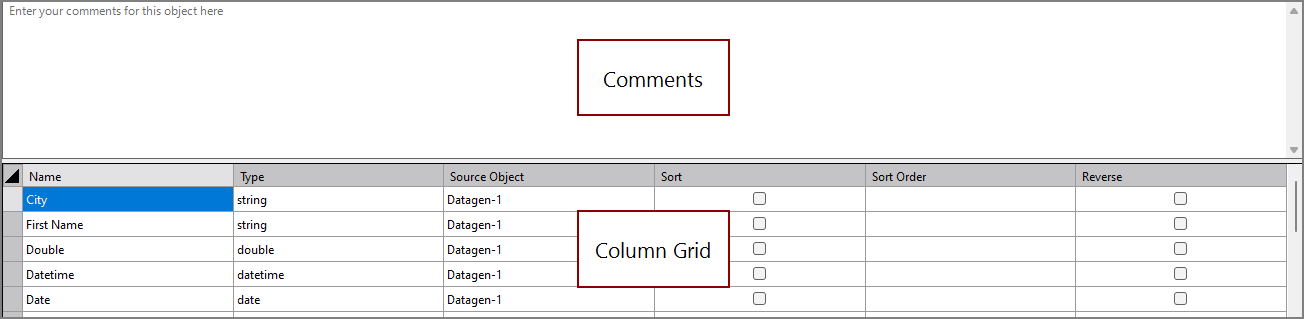

The Sort Process object has two sections in the properties panel where you set attributes.

Each object has an area where you can enter comments. It is DI best practice to enter a note for every object in a Spectre Flow script.

Every Spectre Flow node comment area is Markdown-enabled. For more information, see Workbench Markdown Editor.

The Sort Process object Closedcolumn grid section is where columns are selected for sorting.

Spectre Sort Process Node Column Grid

Attribute Description
Name Displays the name of each input column. This attribute is read-only.
Type Displays the type of each input column. This attribute is read-only.
Source Object

Displays the name of the source object for the column. This attribute is read-only. Double-click the Source Object value for a column to change focus to that object.
Sort Select to add the column to the sort.
Sort Order Generated automatically according to the order in which you check the Sort boxes.
Reverse Select to change from the default (ascending order) to descending order.
