Spectre Flow Datagen Input Object

The Spectre Flow Datagen Input object generates data sets with randomized values.

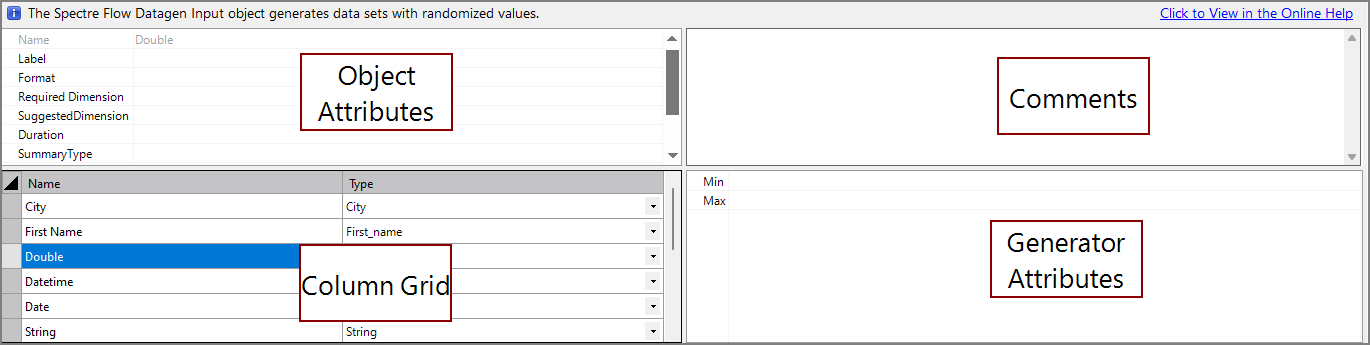

The Datagen Input object has four sections in the properties panel where you set attributes.

Spectre Flow Datagen Object Attributes

You set attributes for the Datagen Input object in the Closedobject attributes section.

Attribute Description
Count Specifies how many rows of data are generated. Required. For information about the flow script tag, see count.
Seed Sets a numerical seed for the generators. This allows generators to generate the same data every time (as long as the seed stays the same). Optional. For information about the flow script tag, see seed.
Current Date Specifies the current day for time-series calculations and Analysis Tables. The value of this attribute must follow the default DI date formatting of "YYYY/MM/DD". It is DI best practice to pass a parameter with the current date value to this attribute rather than writing the value directly in the attribute. The default current date is today().
Date Dimension Specifies the name of the date dimension. This dimension is used in time-series calculations and Analysis Tables.
Extract Timestamp Defines a timestamp value for later use in ProDiver. The timestamp value is accessed in ProDiver using the $EXTRACT_DATE and $EXTRACT_TIME macros. It is DI best practice to pass a parameter with the extract timestamp value to this attribute rather than writing the value directly in the attribute.

To access column properties, select a column from the Column List. The following attributes are common column attributes. For a list of all column attributes, including attributes specific to certain data types, see Spectre Flow Column Tags.

Attribute Description
Name Read only attribute displaying the name of the column.
Type Specifies the data type of the column. Available data types are string, integer, double, fixed100, date, datetime, period, and boolean.
Sort By Defines another column to sort by when this column is sorted. For example, setting Month Number as the Sort By column for Month sorts months by their number instead of their alphabetical order (1 (Jan), 2 (Feb), 3 (Mar), etc.).
Label Defines a display name for a column. This name is displayed in ProDiver and DivePort, while calculations and other technical processes use the value in the Name attribute.
Required Dimension

Sets a column to behave like a classic Info Field. In ProDiver, the info field is available as a column that you can add to other columns displayed in a dive. For example, to see the Address column requires that the Customer column is available.

  1. Select the column you want to define as an Info Field.

  2. Select Required Dimension in the Properties pane.

  3. Locate and select the core dimension from the list.

    The first column is only available when the second column is displayed in the client.
Suggested Dimension

Allows you to promote or demote a column.

  • Set to True to promote a numeric column type to become a diveable dimension and have it appear in the ProDiver console.

  • Set to False to demote a column from classification as a dimension so it does not appear in the ProDiver console.

  • When set to False, the new dimension does not appear in the console (which requires dimcount processing), but it can be promoted to a dimension for diving—equivalent to the concept of a dynamic dimension for a classic model.

  • Using Required Dimension on a column effectively sets Suggested Dimension to False.

Comment Defines a comment that describes this column.

Each object has an area where you can enter comments. It is DI best practice to enter a note for every object in a Spectre Flow script.

Every Spectre Flow node comment area is Markdown-enabled. For more information, see Workbench Markdown Editor.

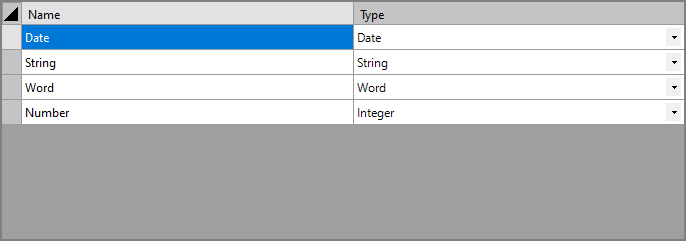

The Datagen Input object Closedcolumn grid section is where you create generator columns.

Attribute Description
Name Specifies the name of each column.
Type Specifies the type of generator for each column.

The City generator has no attributes.

For information about the flow script tag, see city.

The Date generator has the following attributes:

  • Min—The earliest possible date that can be generated.

  • Max—The latest possible date that can be generated.

For information about the flow script tag, see date.

The Datetime generator has the following attributes:

  • Min—The earliest possible datetime that can be generated.

  • Max—The latest possible datetime that can be generated.

For information about the flow script tag, see datetime.

The Double generator has the following attributes:

  • Min—The lowest possible double that can be generated.

  • Max—The highest possible double that can be generated.

For information about the flow script tag, see double.

The First Name generator has no attributes.

For information about the flow script tag, see first-name.

The Fixed100 generator has the following attributes:

  • Min—The lowest possible fixed100 that can be generated.

  • Max—The highest possible fixed100 that can be generated.

For information about the flow script tag, see fixed100.

The Integer generator has the following attributes:

  • Min—The lowest possible integer that can be generated.

  • Max—The highest possible integer that can be generated.

For information about the flow script tag, see integer.

The Last Name generator has no attributes.

For information about the flow script tag, see last-name.

The Name generator has no attributes.

For information about the flow script tag, see name.

The Sequence generator has the following attributes:

  • Start—The first number in the sequence. The default start value of the sequence is 1.

  • End—The last number in the sequence. If the number of the rows in the output is greater than the number entered as the end value, the sequence begins again at the start value.

For information about the flow script tag, see sequence.

The State generator has no attributes.

For information about the flow script tag, see state.

The String generator has the following attribute:

  • Values—A list of values to randomly pull from for each row.

For information about the flow script tag, see string.

The Word generator has the following attributes:

  • Min Length—The minimum length of a generated word.

  • Max Length—The maximum length of a generated word.

For information about the flow script tag, see word.
