QuickView Code Samples

Here is an example of a Report page that uses a Dimension Quickview.

  report-page {
    title "Report Page 1"
    cplan "/cplans/basic_101.cplan"

    quickview-set {
      cplan "/cplans/basic_101.cplan"
      dimension-quickview "Beverage Type" label = "Bev Type"
    }
    dimension "Corporate Supplier"
    dimension "Corporate Product Group"
    text column = "Cases"
    text column = "Cost"
  }

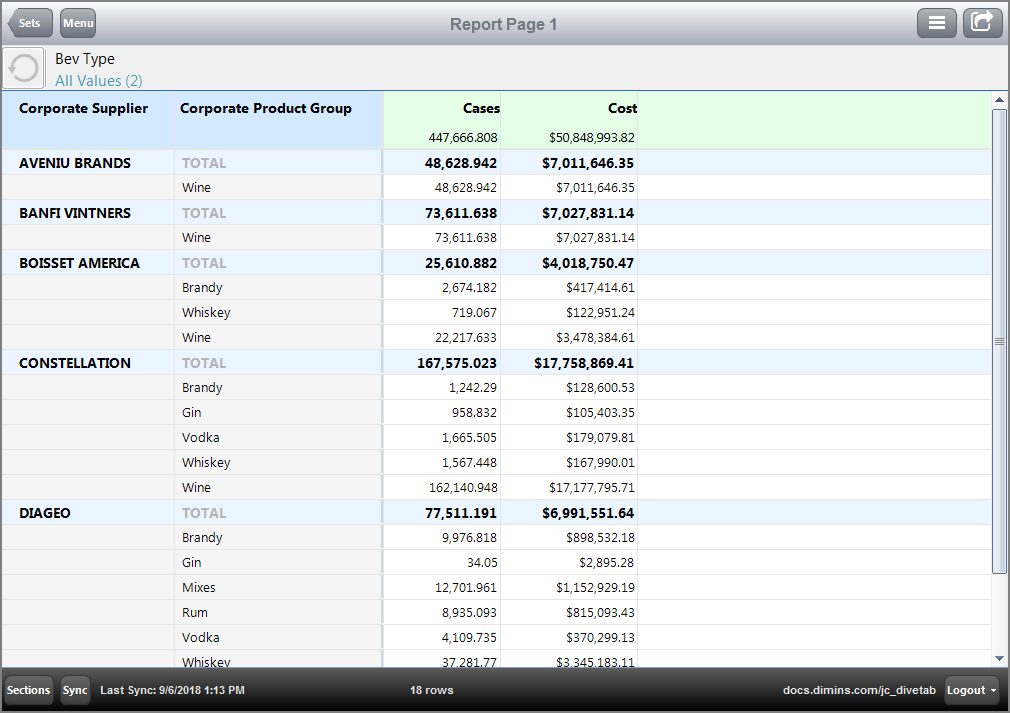

Here is the result of the code in DiveTab.

Here is an example of a Report page that uses a List QuickView.

  report-page {
    title "Report Page 2"
    cplan "/cplans/basic_101.cplan"

    quickview-set {
      cplan "/cplans/basic_101.cplan"
      list-quickview "Corporate Supplier" label = "Supplier" {
        values "DIAGEO" "CONSTELLATION"
      }
    }
    dimension "Corporate Supplier"
    dimension "Corporate Product Group"

    text column = "Cases"
    text column = "Cost"
  }

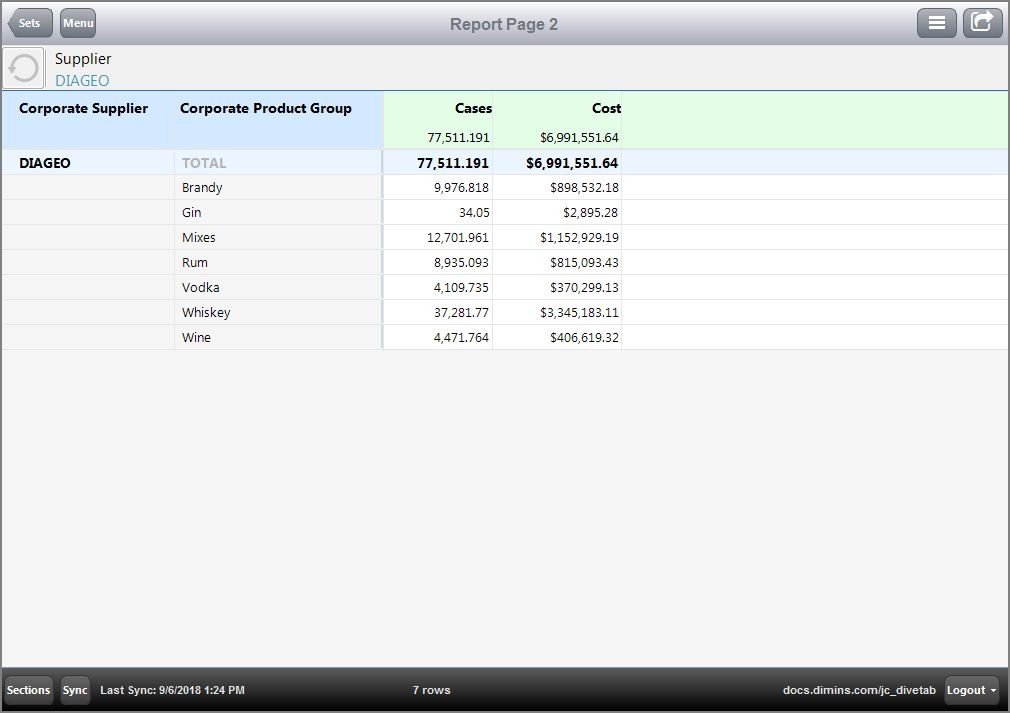

Here is the result of the code in DiveTab.

Here is an example of a Report page that uses a Parameterized List QuickView.

  report-page {
    title "Report Page 3"
    cplan "/cplans/quickview.cplan"

    quickview-set {
      cplan "/cplans/quickview.cplan"
      list-quickview "Metric" label = "Unit" single-selection = true all-values = false {
        default-values "Cases"
        values "Cases" "Cost" "9 Liter Cases" "BATF Cases" "Discount" "Net Sales"
      }
    }
    dimension "Premise"
    dimension "Resp Team"

    text column = "Metric Value"
  }

Here is the code used by the cPlan.

cplan {
  cbase-input "/cbases/NY.cbase"
  take-parameter "Metric" {
    default "Cost"
  }
  calc "Metric Value" `calc(param("Metric"))` label = "$(Metric)"
}

Here is the result of the code in DiveTab.

Though the default value is set to Cases, other values can be chosen using the Set QuickView dialog.

Here is a view of the Set QuickView dialog, with new value Cost selected.

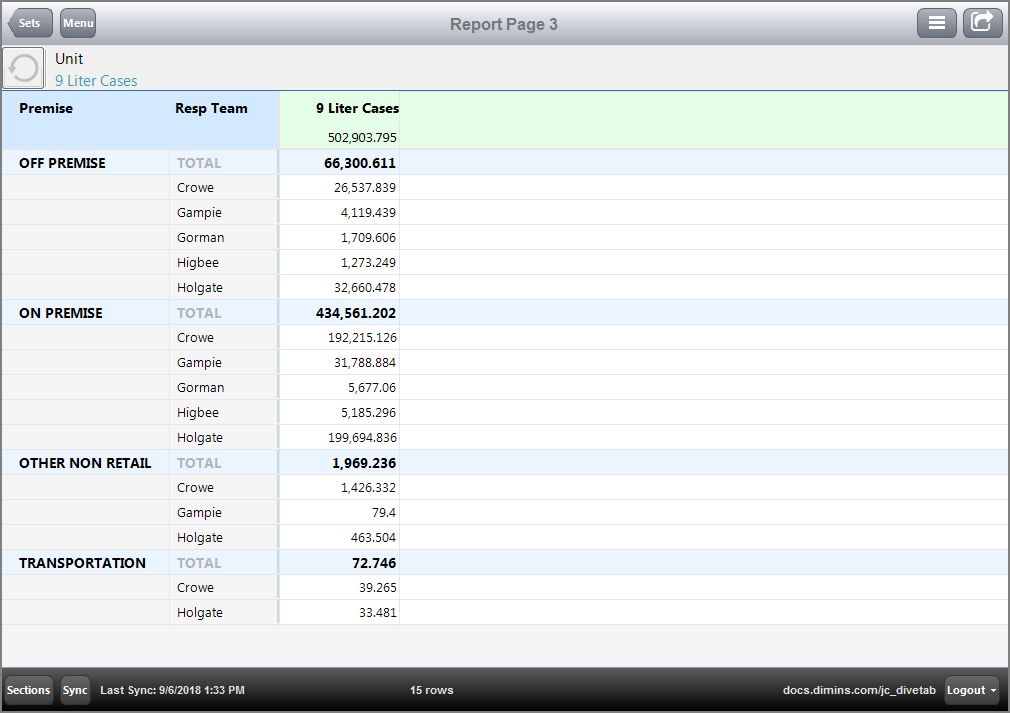

Here is the result of the change in DiveTab.

Here is an example of a Report page that uses a Anchor Date QuickView.

  report-page {
    title "Report Page - Anchor Date QuickView"
    cplan "/cplans/quickview_time-series.cplan"

    quickview-set {
      cplan "/cplans/quickview_time-series.cplan"
      dimension-quickview "Current Year" label = "Year" single-selection = true all-values = false {
        dimension "Year"
        default-values "2012"
        default-last-value
      }
    }

    dimension "Product Name"
    text column = "Cases YTD" {
      value-format "#,###.00"
    }
  }

Here is the code used by the cPlan.

cplan {
  cbase-input "/cbases/NY.cbase" {
    add "Year" `year(value("Posting Period"))` format = "#"
  }
  take-parameter "Current Year" {
    default "2017"
  }

  time-series {
    date `value("Posting Period")`
    anchor ```if(param("Current Year") = "2017", date("2017/12/31"),
              if(param("Current Year") = "2013", date("2013/12/31"),
              if(param("Current Year") = "2012", date("2012/12/31"),
                                                 date("2011/12/31"))))```

    summary "Cost"
    summary "Cases"

    ranges {
      year-to-date
      month-to-date
      current-year
      all-quarters
      rolling-months 3
      rolling-months 6
      recent-weeks 24
      recent-months 12 label-format = "MMM"
      all-months label-format = "MMM"
    }
  }
}

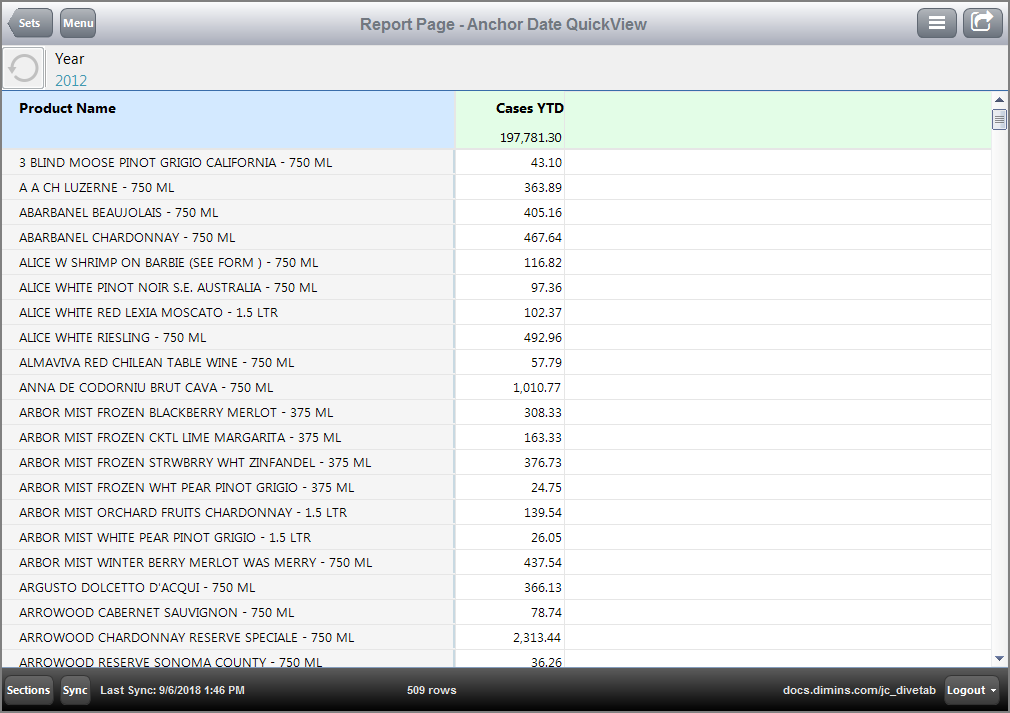

Here is the result of the code in DiveTab.
