Switching Dimensions

You can update the data displayed in a tabular dive window or report by switching the specified dimension. You can switch any vertical dimension in a MultiTab window.

  1. Click the Closedcolumn heading for the dimension that you want to change.

    On the Console, switch dimension icons Switch dimension icon. indicate dimensions that are suitable for switching.

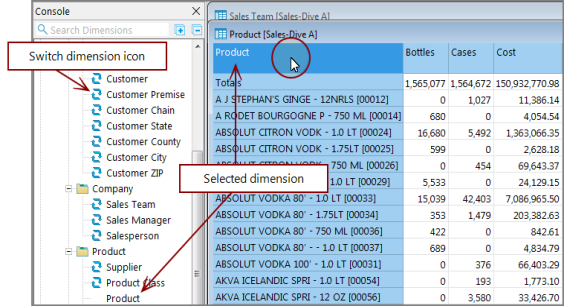

    Tabular example.

  2. On the Console, double-click the dimension that you want to change to.

    The dive window and Console History are Closedupdated to show the switched dimension.

    Updated window.

  1. Click the Closedcolumn heading for the dimension that you want to change.

    On the Console, switch dimension icons Switch dimension icon. indicate dimensions that are suitable for switching.

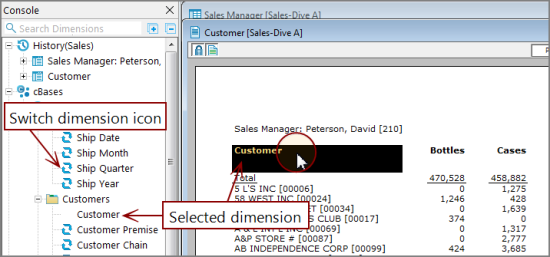

    Report example.

  2. On the Console, double-click the dimension that you want to change to.

    The dive window and Console History are Closedupdated to show the switched dimension.

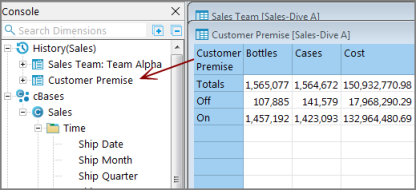

    Updated window.

See also Swapping the Position of MultiTab Dimension Columns.
