About Text Variables

A text variable is an item or group of items whose value can vary according to the context. The Text Item Type option (Add Item > Data > Item Type > Text) provides the ability to select from a library of preset text variables as well as add text strings to a report.

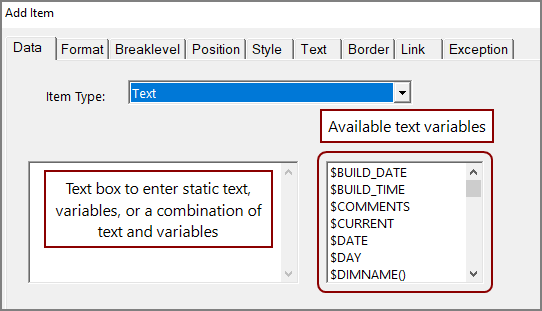

Add or edit text item dialog box

Combine text variables with text strings

To add a text variable to the text item, double-click the variable in the list or enter the text variable in the text box using all capital letters. You can add preceding and trailing text to a text item. Preceding text must be separated from the text variable by a space, and trailing text must be separated from the text variable by at least two spaces.

For example, the Last Page Number variable ($MAXPAGE) displays the page number of the report's last page. If you add or remove pages, ProDiver updates the value of the variable accordingly. If you want your report to display page numbers using the format “Page 1 of 10”, you can create a page-number variable string that combines text and two variables, $PAGE and $MAXPAGE, to accomplish this result.

For example:

Page $PAGE of $MAXPAGE

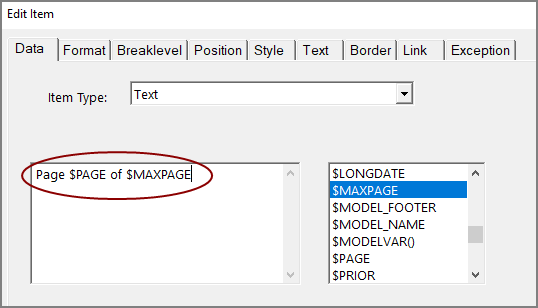

Combine text strings and variables in the item dialog box

Text item options

Unless otherwise specified, ProDiver places the value of a new text item centered at the top of the report page. For example, if you enter the example page-number variable string and use the default position and style options, ProDiver centers the page number at the top of each page of the report. You can customize the text item, such where it appears on the report, by using options available on other tabs on the Add and Edit Item dialog boxes.

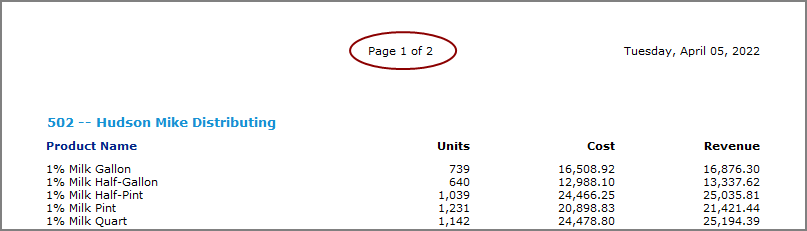

Report with example page number heading

Available text variables

The following table lists the text variables that are available on the Text item, Data tab on the Add Item and Edit Item dialog boxes.

Text Variable	Description
$BUILD_DATE	Inserts the creation date for the cBase or model, or the date when the last model in a multimodel DivePlan is created. The format is dddd, MMMM dd, yyyy, which displays as Friday, April 8, 2022. Optionally, in a multimodel DivePlan, you can specify the build date for a different cBase or model by entering its full path.
$BUILD_TIME	Inserts the creation time for the cBase or model, or the time when the last model in a multimodel DivePlan was created. The format is HH:mm, which displays as 13:22. Optionally, in a multimodel DivePlan, you can specify the build time for a different cBase or model by entering its full path.
$COMMENTS	Inserts a text string that is defined when the cBase or model is created. In a cBase, $COMMENTS is defined in the build script in the Description property of the cBase output object. In a model, $COMMENTS is defined in the Builder object, Model Variable Options, Comments property.
$CURRENT	Inserts the value of the current period in a Period Comparison report.
$DATE	Inserts the current system date. The default format is dddd, MMMM dd, yyyy, gg which displays as Wednesday, April 06, 2022 A.D. You can reformat the date by entering a formatting argument after the variable, such as dd-MM-yyyy, in parentheses with no spaces. In the $DATE format strings, you must enter the letters "d", "y", and "g" (for period, if available) in lowercase and the letter "M" in uppercase.
$DAY	Inserts the day of the week based on the current server system date. The format is dddd, which displays the full day of the week, such as Thursday.
$DIMNAME(n)	Inserts a dimension name from a MultiTab report. Dimension names appear as column headings from left to right across the top of the report. The argument (n) = a number from 1 through n.
$DIMVAL(n)	Inserts a dimension value or values from a MultiTab report. Dimension values appear as row items below their respective dimension column headings. The argument (n) = a number from 1 through n.
$EXTRACT_DATE	Inserts the extraction date for the cBase or model source data, or the date of when the data for the last model in a multimodel DivePlan is extracted. The date format is dddd, MMMM dd, yyyy, which displays as Friday, March 22, 2022. The extract date, or the extract date and time, must be specified as part of the build. In a cBase, $EXTRACT_DATE and $EXTRACT_TIME are defined in the Extract Time property of the cBase output object in the build script. In a model, $EXTRACT_DATE and $EXTRACT_TIME are defined in the Model Variable Options, Extract_Time variable of the model output object. Optionally, in a multimodel DivePlan, you can specify the extract date for a different cBase or model by entering its full path.
$EXTRACT_TIME	Inserts the extraction time for the cBase or model source data or the time when the data for the last model in a multimodel DivePlan is extracted. The time is formatted as HH:mm, which displays as 13:22. The extraction date, or the extraction date and time, must be specified as part of the build. In a cBase, $EXTRACT_DATE and $EXTRACT_TIME are defined in the Extract Time property of the cBase output object in the build script. In a model, $EXTRACT_DATE and $EXTRACT_TIME are defined in the Model Variable Options, Extract_Time variable of the model output object. Optionally, in a multimodel DivePlan, you can specify the extraction time for a different cBase or model by entering its full path.
$FIND_COLUMN	Inserts the name of a column heading that is used as part of a Find action.
$FIND_DATE_FROM	Inserts the earliest value of a Find Date Range action.
$FIND_DATE_TO	Inserts the latest value of a Find Date Range action.
$FIND_HIGH	Inserts the high value of a Numeric Find action.
$FIND_LOW	Inserts the low value of a Numeric Find action.
$FIND_PERIOD_FROM	Inserts the earliest value of a Find Period Range action.
$FIND_PERIOD_TO	Inserts the latest value of a Find Period Range action.
$FOOTER	Inserts the contents of the Footer text box from File > Print > Page Setup > Headers.
$HEADER	Inserts the contents of the Header text box from File > Print > Page Setup > Headers
$INFONAME( )	Inserts an Info Field name added to a tabular report.
$INFOVAL( )	Inserts an Info Field value added to a tabular report.
$LONGDATE	Inserts the current server system date. The format is dddd, MMMM dd, yyyy, which displays as Wednesday , April 06, 2022.
$MAXPAGE	Inserts the last page number of the report.
$MODEL_FOOTER	Inserts what is entered as a footer in the cBase or model that is used to create the report. The footer must be specified as part of the build. In a cBase, $MODEL_FOOTER is defined in the cBase output object of the build script as a user defined property, of type CustomProperty, named footer. In a model, $MODEL_FOOTER is defined in the Model Variable Options, Footer variable of the model output object. Optionally, in a multimodel DivePlan, you can specify the full path for a different cBase or model name as an argument, and ProDiver inserts the footer content for that cBase or model.
$MODEL_NAME( )	Inserts the name of the cBase or model that is used to create the report or the name of the last cBase or model in a DivePlan. Optionally, in a multimodel DivePlan, you can specify the full path to a different cBase or model as an argument, and ProDiver inserts the name for that cBase or model.
$MODELVAR(<var>,<model>)	Inserts the value of a custom property that is created by the developer during the cBase build process or a named variable that is created in a model. The argument <var> is the name of the custom property in the cBase or the named variable in the model. Optionally, in a multimodel DivePlan, you can enter (<var>,<model>) as the argument, where <model> is the full path to a different cBase or model in the DivePlan. The (<var>,<model>) argument retrieves the custom property from the specified cBase or the named variable from the specified model.
$PAGE	Inserts the current page number on each page of the report.
$PRIOR	Inserts a previous period value from a Period Comparison report. The date format is MMMM d, yyyy, which displays as May 1, 2022.
$QVVAL( )	Inserts the value for a QuickView.
$ROW	Inserts the row numbers for the dimension values of a report.
$SHORTDATE	Inserts the current system date. The format is d/M/yyyy, which displays as 4/6/2022.
$SORT_COLUMN	Displays which column heading the report uses to sort values up or down.
$SUMNAME( )	Displays the name of a summary column heading from a MultiTab report.
$SUMVAL( )	Inserts the value of $SUMVAL(n, B), where “n” defines the type of summary value(s) and “B” defines the breaklevel.
$TIME	Inserts the current system time. The format is h:mm tt, which displays as 11:17 AM.
$TOTAL_STRING	Displays the string total or subtotal.
$XTAB_DIMENSION	Displays the horizontal dimension selected for a CrossTab report.
$XTAB_ELEMENT	Displays the summary field selected for a CrossTab report.
