Opening NetDiver Files

Use the NetDiver window to open files including, but not limited to cBases, cPlans, DivePlans, markers, models, and DiveBooks.

To open a file:

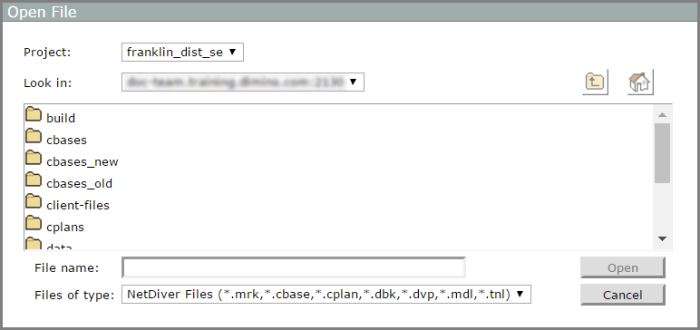

On the toolbar, click the Open File icon . The Open File dialog box opens.

NOTE: The available options on the Open File dialog box vary, depending on whether the DiveLine administrator has designated a home project. If you have previously opened a file on the server, the Open File dialog box defaults to the last directory visited during the session as a starting point.

Home project

The name of the project appears above the Look in box.

If a home project is assigned to you, the Look in box is populated with your default home directory.

No home project

If a home project is not assigned to you, you might need to select a project in the Project list. In many cases, the DI developer creates only one project.
Browse to the file that you want to open, and double-click the file name; or select the file name, and then click Open.

NOTE: If you are using a touchscreen device to open a folder, select it, and then tap Open.

Note the following:

Security settings are inherited from DiveLine. If you attempt to open a file to which you do not have access, a Permission Denied error appears.
If the DivePlan related to the file that you are opening is already open, the new DivePlan uses the already-open console.
You can open only one project at a time.
You can open multiple files in a project.
If a project is open and you attempt to open a file that is in a different project, you will see the following warning:

If you switch projects, all open files will be closed. Continue?

If you click Yes, any open data sources close before the new file opens.

Icons

	Go to your home directory.
	Go up one level.
	Open a new folder.
	Change the file list view from list to column (details) or from column to list.
	Show information about the selected marker in a tooltip.
