MultiTab Display

A MultiTab display has more than one horizontal dimension. It shows the same data as the Tabular display from which it is created, but displays more detail in additional rows. The following example shows a Tabular view of a primary dive on the Product Class dimension.

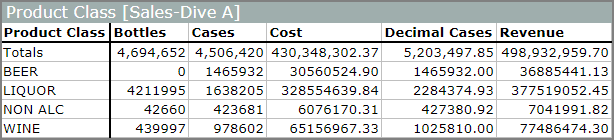

Example of a tabular display.

Changing the presentation to MultiTab and adding Brand as a second dimension shows the same data, but each value in the Product Class is broken up by its respective brand name and displays in multiple rows.

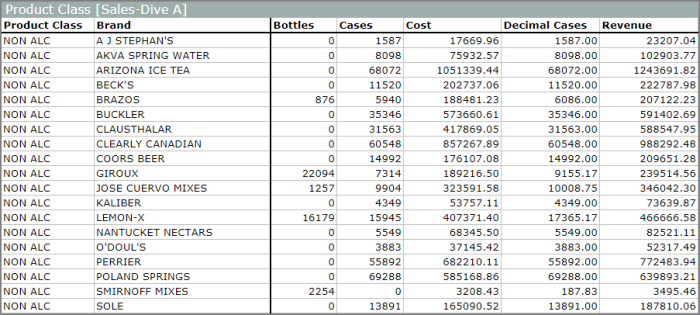

A MultiTab display that shows values in Product Class broken down by values in Brand.

Note that the vertical dimension columns are separated from the summary columns with a thick black line. The width of vertical dimension columns is limited, depending on the total width of the dive window. Long column values are truncated.

For more information, see Creating a MultiTab Display.
