Enabling the Default HTTPS Connector

To establish a connection between DivePort and NetDiver clients and Tomcat, you must enable the HTTPS connector by editing the server.xml file.

1. If Tomcat is running, stop it.

   sudo /di/platform/downloads/apache-tomcat-<version-number>/bin ./shutdown.sh

2. Go to the Tomcat directory (/etc/tomcat<version-number>)

   cd /etc/tomcat<version-number>

3. Make a backup copy of the server.xml file called serverorig.xml

   sudo cp server.xml serverorig.xml



4. Verify that the file is copied correctly by entering the following command:

   ls

5. View the permissions of the server.xml file

   ls -l server.xml

   The permissions display. If the permissions are -rwxrwxrwx, you can edit the file.

   If you do not have permissions:

   • Enable the execute permission.

     sudo chmod a+rwx server.xml

   • Verify that the permissions have changed.

     ls -l server.xml

6. Open the server.xml file using a text editor, such as gedit.

   gedit server.xml

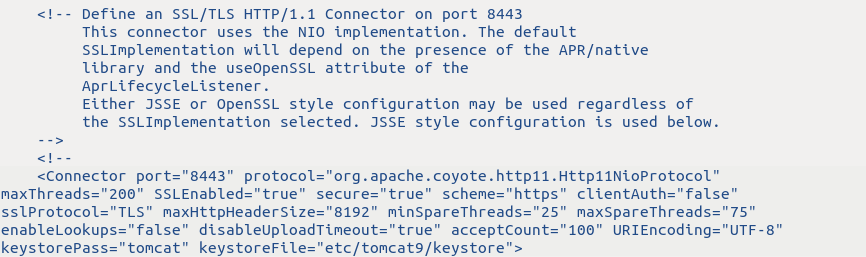

7. Locate the section beginning with Define an SSL/TLS HTTP/1.1 Connector on port 8443.



8. In the "Define an SSL/TLS HTTP/1.1 Connector on port 8443" and "Connector port" sections of the server.xml file, make the following edits:

   1. Remove the commented lines beginning with "This connector..." and ending with "used below".

   2. After <Connector port= "8443", add the following attributes:

      Copy

      SSLEnabled="true"
      maxHttpHeaderSize="8192"
      minSpareThreads="25"
      maxSpareThreads="75"
      enableLookups="false"
      disableUploadTimeout="true"
      acceptCount="100"
      URIEncoding="UTF-8"
      keystorePass="tomcat"
      keystoreFile="/etc/tomcat9/keystore"

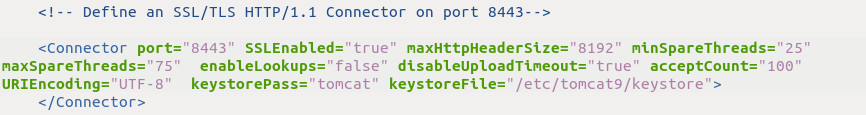

9. Remove the comment symbols, (<!-- and -->) around the <Connector Port= ... /> section. The file appears as follows:



10. Save and close the server.xml file.

11. Start Tomcat.

    sudo /di/platform/downloads/apache-tomcat-<version-number>/bin ./startup.sh

NOTES:

• When DivePort software generates URLs, non-ASCII characters are encoded to ensure that the URL only contains ASCII characters. For these generated strings, ISO-8859-1 or UTF-8 encoding is acceptable.

• If users intend to enter URLs that contain non-ASCII characters, set the URIEncoding on the Tomcat connector according to the encoding that they intend to use.
