Diving on a Tabular Display

Optionally, your DivePort administrator can enable diving on tabular portlets. When they do, they specify which dimensions you can dive on.

TIP: If diving is enabled, when you place the pointer on a measures row, the row background color changes.

To dive on a measures portlet:

  1. Click a row on the measures portlet.

    A list of diveable dimensions appears.

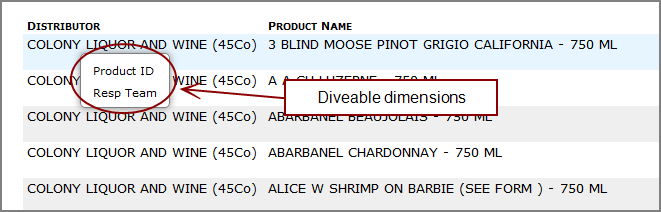

    Measures portlet with diveable dimensions.

  2. Select the dimension that you want to dive on.

    DivePort dives on the data. Information from the selected row appears as a link above the tabular display. You can click the link to return to that display.

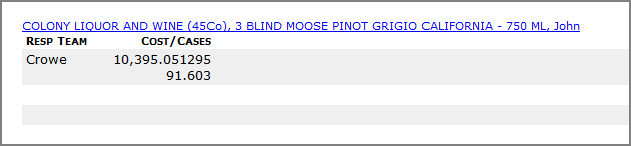

    Dive on measures portlet results.

NOTE: If the portlet has row-scoped click actions in addition to diving enabled, when you click the row, you see Dive as an option on the click action list. Click Dive to access the diveable dimensions list.

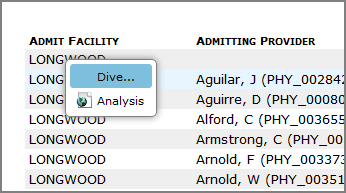

Click action list with a Dive option.
