Printing a Portlet

Starting in DivePort 7.1(14), measures portlets and marker portlets have an option to Print Portlet PDF Instead of Page. When this option is enabled, clicking Print > Print to PDF converts the portlet display to pdf format. If the page has multiple portlets with this option set, DivePort combines them in a single pdf file, each one starting on a new page.

This feature can be combined with the Include child pages in PDF option. If this is done, a single pdf file is returned with the content from all pages involved.

Measures portlets also have the option to include parent information in the pdf file.

Option location

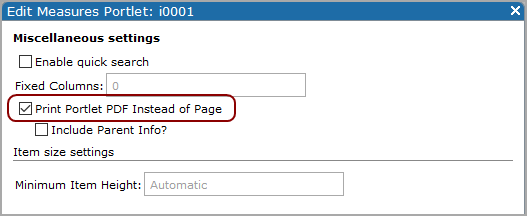

ClosedMeasures portlet—Miscellaneous settings

ClosedMarker portlet

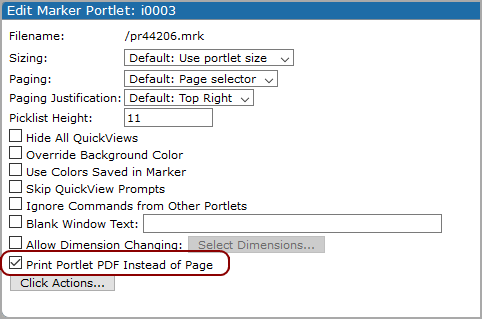

Edit marker portlet dialog box
