Adding Stamps

You can create a specially formatted self service page that users can use to add stamp dashboards using Measure Factory data. When users add a stamp to a self service page, they specify a measure, any filters that they want to include as QuickViews, and a stamp template. All configuration information and formatting is defined in the stamp template. Users can add multiple stamps to their self service page, and choose different measures and stamp templates for each.

NOTE: Diver Platform does not ship with any self service-compatible stamps by default. Developers create stamp templates that are specifically enabled for self service in Workbench. Self service stamps must be configured with one measure only. The configuration cannot include dimensions or additional options. Custom stamps are stored in the ...\webdata\<diveport>\customizations\stamps directory.

Users can add a stamp as follows:

Using the simplified interface

Browse to their self service page.

TIP: If a new self service page is totally blank, refresh the page.
On the upper-right corner of the page, click the Edit icon.

A two-tab pane opens on the left side of the page, listing available Measures and Filters (dimension QuickViews).
On the Measures tab, select the measure to use for the dashboard.

A measure definition and Select a stamp for your page list appears.
Double-click the self service stamp template that you want to use.

The stamp dashboard is added to the page.
To add QuickViews to the page, click the Filters tab, and then select the options to use for QuickViews.

TIP: Filters are left-to-right dependent. If you change values on the left filter, DivePort automatically removes non-applicable options from the filters to its right.
To save the page, on the upper-right corner of the page, click the Save icon.

To remove a stamp, use a drag-and-drop operation to move it to the trashcan on the bottom right of the page.

Using the My Library interface

Select My Library and navigate to an environment containing a self service page.
Select the New Self Service Page icon.

The Add Measures dialog box opens.
Do one of the following:

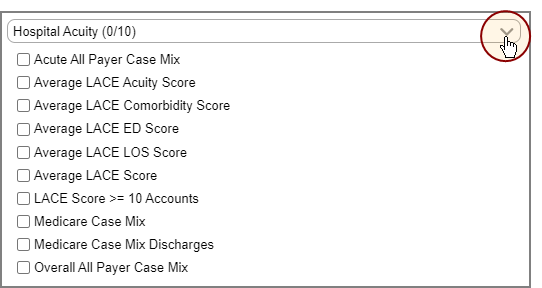

- Click a chevron next to the name of a category to expand the list of measures.
- Select Expand all to display the names of all available measures.

  TIP: To see more information about a measure, select the information icon that appears when you place the pointer on the measure name.
Select the check box next to the measures that you want to use for stamps.
Select OK.

If a default stamp is defined for the selected measures, the stamps appear on the page. Proceed to step 7.

Otherwise, the available stamp types appear.
Select a stamp type.

The selected measures appear as stamps.
(Optional) To add QuickViews to the page, on the menu bar, click the Manage Filters icon .

The Manage Filters page opens.
Select Add filter(s).

A list of QuickViews categories appear.
Do one of the following:
- Expand the QuickView category to open the list of values.
- Select Expand All to expand all QuickView categories.
Select one or more QuickView values.
Select OK.

A list of the selected filters appears.
Select OK.

The QuickViews appear at the top of your self service the page.
